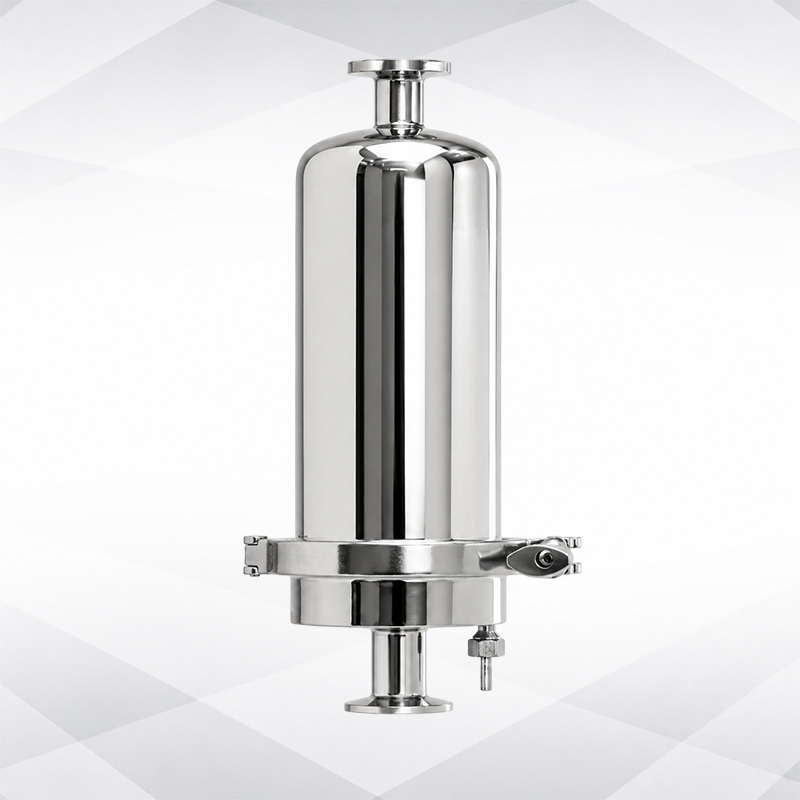

Inline Filter Housing
An Inline Filter Housing is an industrial filtration system designed to remove suspended particles, contaminants, and impurities from liquid or gas pipelines without stopping the process flow. It helps protect downstream equipment, improve product quality, reduce maintenance costs, and provide reliable filtration.
An Inline Filter Housing is a type of cartridge filter housing that holds one or more filter cartridges inside a pressure-resistant vessel. Installed directly in the pipeline, it continuously removes unwanted particles before they reach pumps, valves, heat exchangers, membranes, spray nozzles, and other critical equipment. It is suitable for both pre-filtration and fine filtration in a wide range of industrial applications.
Aris Filtration is a leading manufacturer and exporter of Inline Filter Housings in Gujarat, India. We design and manufacture high-performance filtration systems that offer durability, high flow capacity, easy cartridge replacement, and long service life. Our filter housings are built to deliver reliable performance and meet recognized engineering and manufacturing standards.
What Is an Inline Filter Housing?
An Inline Filter Housing is a pressure-resistant vessel that holds one or more filter cartridges to remove solid contaminants from liquids or gases flowing through a pipeline. It is installed directly in the pipeline, allowing the fluid to pass through the filter before reaching downstream equipment.
Definition:
An Inline Filter Housing is a closed filtration vessel that holds filter cartridges to continuously remove suspended particles from process fluids while maintaining uninterrupted flow.
The housing is commonly manufactured from Stainless Steel 304, Stainless Steel 316, Stainless Steel 316L, or other corrosion-resistant materials, depending on the application and the type of process fluid.
How Does an Inline Filter Housing Work?
The working principle of an Inline Filter Housing is simple but still highly effective.
Step-by-Step Process:
1. Dirty liquid or gas enters the filter housing through the inlet.
2. The fluid passes through the filter cartridge.
3. The filter removes dirt, rust, sediments, scale, and other impurities.
4. The clean fluid leaves through the outlet and continues through the system.
When the cartridge becomes full of contaminants, it is replaced or cleaned based on its type. This helps keep the product clean, protects equipment, and minimizes downtime.
Why Is an Inline Filter Housing Important in Industrial Filtration?
Many industrial processes contain impurities that can harm equipment, lower performance, and reduce product quality.
An Inline Filter Housing helps by:
- Removing suspended solids and fine particles
- Protecting pumps, valves, flow meters, and membranes
- Reducing equipment wear and maintenance
- Improving production consistency
- Extending the life of downstream filtration systems
- Supporting uninterrupted industrial operations
- Lowering overall operating costs
Key Statement: Inline Filter Housings improve process accuracy by removing contaminants before they reach critical equipment.
Project Gallery
What Features Should You Look for in an Inline Filter Housing?
The performance of a filter housing depends on its construction, compatibility, and ease of maintenance.
Key Features:
- Heavy-duty stainless steel construction
- Corrosion-resistant design
- High operating pressure capability
- Multiple cartridge configurations
- Leak-proof sealing arrangement
- Easy cartridge replacement
- Low pressure drop
- Compact inline installation
- Smooth internal finish for hygienic applications
- Custom inlet and outlet connections
- Suitable for various micron-rated filter cartridges
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Inline Filter Housing |
| Housing Material | SS304, SS304L, SS316, SS316L |
| Filter Media | PP Pleated, Wound, Melt Blown, SS Mesh, Activated Carbon and more |
| Cartridge Length | 10", 20", 30", 40" |
| Cartridge Capacity | Single & Multi Cartridge |
| Connection Type | BSP Threaded, Flanged, Tri-Clamp |
| Operating Pressure | As per application requirements |
| Surface Finish | Mirror, Matt or Electro Polished |
| Installation | Horizontal or Vertical |
| Customization | Available |
Which Industries Use Inline Filter Housings?
Inline Filter Housings are suitable for filtration applications across multiple industries, including:
- Water Treatment Plants
- Refineries
- Mining
- Pulp & Paper
- Chemical Processing
- Textile Manufacturing
- Power Plants
- Dye & Intermediates
- Oil & Gas
- Edible Oil Processing
- Automotive Manufacturing
- Petrochemical Plants
- Paint & Ink Production
- Aeronautics
- Cement Plants
- Fertilizer Manufacturing
- Bio-Pharmaceutical Industry
- Ceramic Industry
- Sugar Industry
- Defence & Marine Applications
Each industry requires different filtration efficiencies, housing materials, and pressure ratings. Custom-engineered housings help meet specific process requirements.
What Are the Benefits of Choosing an Inline Filter Housing?
Selecting the right filter housing offers long-term operational advantages.
Key Benefits:
- Prevents equipment damage
- Improves product quality
- Reduces maintenance frequency
- Minimizes production downtime
- Handles high flow rates efficiently
- Supports continuous filtration
- Easy installation and maintenance
- Long operational life
- Suitable with different cartridge types
- Cost-effective filtration solution
Key Statement: An Inline Filter Housing is one of the most effective solutions for protecting industrial process equipment from particle contamination.
Why Choose Aris Filtration for Inline Filter Housing?
Aris Filtration is a trusted manufacturer and exporter of industrial filtration solutions based in Gujarat, India, serving customers in India and around the world.
We offer a complete range of filter housings, including Cartridge Filter Housings, SS Cartridge Filter Housings, UPVC Filter Housings, Steam Filter Housings, Electro Plating Filter Housings, SS Bag Filter Housings, SS Basket Filter Housings, SS Conical Filter Housings, and other specialized filtration systems. Our wide product range allows customers to source all their filtration solutions from a single, reliable manufacturer.
Why Industries Trust Us?
- Experienced filtration solution provider
- Accurate manufacturing
- High-quality stainless steel fabrication
- Custom-built designs for industrial applications
- Reliable quality control
- Timely delivery
- Technical support for product selection
- Solutions designed for demanding operating environments
Whether you require a standard housing or a customized filtration solution, our engineering team works closely with customers to deliver products that match process conditions, flow requirements, operating pressure, and filtration efficiency.
Frequently Asked Questions (FAQs)
(1)What is an Inline Filter Housing used for?
An Inline Filter Housing removes suspended particles and contaminants from liquids or gases flowing through pipelines. It helps protect equipment and improves process quality.
(2)What materials are Inline Filter Housings made from?
Inline Filter Housings are commonly made from Stainless Steel 304, Stainless Steel 304L, Stainless Steel 316, and Stainless Steel 316L. The material is selected based on the application and process fluid.
(3)Can Inline Filter Housings be customized?
Yes. They can be customized for flow rate, pressure, and number of cartridges, connection type, mounting orientation, and housing material.
(4)Which filter cartridges can be used?
Inline Filter Housings are compatible with pleated, melt blown, wound, activated carbon, stainless steel mesh, and other industrial filter cartridges.
(5)Which industries use Inline Filter Housings?
They are widely used in water treatment, oil & gas, chemicals, pharmaceuticals, food processing, textiles, mining, power plants, petrochemicals, paints, paper, fertilizers, and marine industries.
(6)When should the filter cartridge be replaced?
The cartridge should be replaced or cleaned when it reaches its dirt-holding capacity or when the pressure drop increases. The replacement interval depends on the process conditions and the level of contamination.
Looking for a Reliable Inline Filter Housing Manufacturer?
If you need a durable, high-performance Inline Filter Housing for industrial liquid or gas filtration, Aris Filtration offers engineered solutions designed for efficiency, safety, and long-term performance. Contact our team to discuss your filtration requirements, operating conditions, and customization needs. We will help you select the right Inline Filter Housing to achieve consistent filtration performance and protect your critical process equipment.
