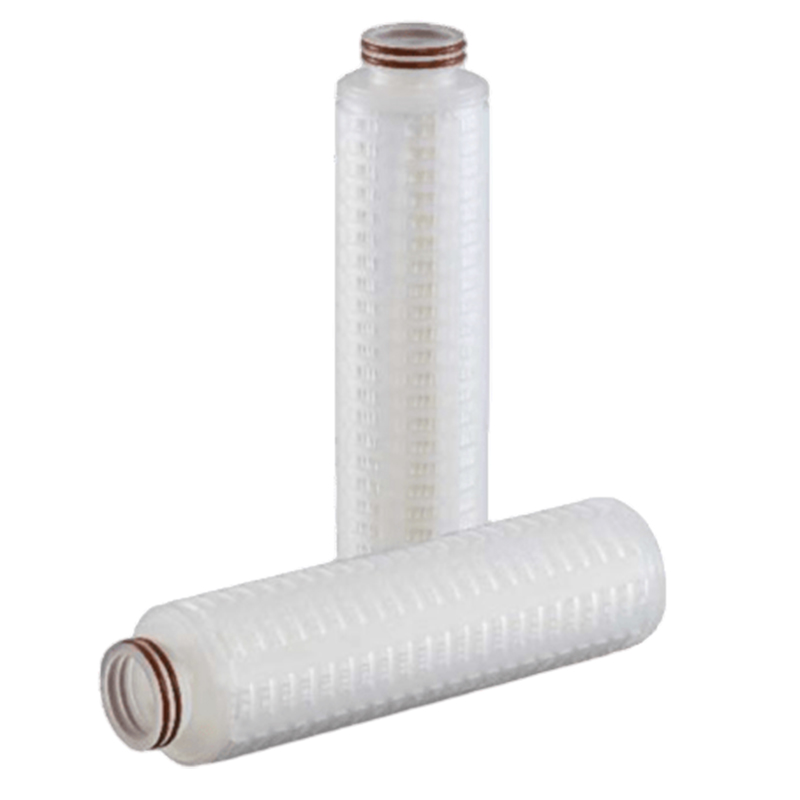

What Is a Glass Fiber Pleated Filter Cartridge?

A Glass Fiber Pleated Filter Cartridge is a cartridge-type filtration element made with pleated glass fiber media designed to remove suspended particles and contaminants from liquids or gases. The pleated construction increases the available filtration surface area within a compact cartridge, while the glass fiber media provides depth filtration and particle retention.

Glass fiber cartridges are particularly useful when the filtration process requires fine particulate removal, high dirt-holding capacity and controlled pressure drop.

Unlike a simple surface filter, a glass fiber pleated cartridge can retain contaminants within the depth of the fibrous media. This makes the cartridge suitable for process streams where contaminant loading and downstream equipment protection are important.

How Does a Glass Fiber Pleated Filter Cartridge Work?

The process is straightforward:

• Contaminated fluid enters the filter cartridge.
• The pleated glass fiber media provides a large filtration surface.
• Suspended particles are intercepted by the filter media.
• Cleaner fluid passes through the media and exits the cartridge.
• As contaminant loading increases, differential pressure across the cartridge rises.
• The cartridge is replaced when the operating pressure-drop limit specified for the selected construction is reached.

The primary function of a glass fiber pleated filter cartridge is to remove particulate contaminants while maintaining useful flow and protecting downstream filtration equipment.

Why Choose Glass Fiber Pleated Filter Cartridges for Industrial Filtration?

Glass fiber is selected for applications where conventional filtration media may not provide the desired combination of fine particle retention, dirt-holding capacity and process performance.

Key advantages include:

• High filtration area: Pleating creates a large effective media area within a compact cartridge.
• Fine particle retention: Glass fiber media can be manufactured in fine filtration grades.
• High dirt-holding capacity: The depth structure allows contaminants to be retained within the media.
• Low pressure-drop potential: Properly selected pleat density and media grade can support efficient flow.
• Chemical compatibility: Glass fiber can be suitable for numerous industrial liquids, subject to media, binder, seal and temperature compatibility.
• Compact installation: Cartridge construction allows high filtration capacity without requiring a large filtration footprint.
• Downstream protection: The cartridge can be used as a pre-filter to reduce particulate loading on finer or more expensive filtration stages.

Independent industry product literature also describes glass fiber pleated cartridges as suitable for high-flow applications requiring high filtration area, particle removal and dirt-holding capacity.

What Applications Use Glass Fiber Pleated Filter Cartridges?

Glass fiber pleated cartridges can be selected for a broad range of industrial filtration duties were suspended solids, fine particles or process contaminants must be controlled.

Application suitability depends on the fluid chemistry, temperature, pressure, contaminant concentration, required micron rating and cartridge construction.

What Micron Rating Should You Choose?

The correct micron rating depends on the particle size that must be removed and the required downstream protection.

Common glass fiber cartridge ranges available in the broader industry include fine grades such as 0.45, 1, 3, 5, 10 and 20 µm, although the actual available rating should always be confirmed with the manufacturer for the selected cartridge design.

A simple selection principle is:

• Fine micron rating: Higher particle retention, generally with greater resistance to flow.
• Coarser micron rating: Higher flow potential and greater tolerance for larger particles.
• Pre-filtration: Select a rating that reduces the contaminant burden on the downstream filter.
• Final filtration: Select according to the required product or process cleanliness.

Micron rating should never be selected only from the nominal particle size; contaminant loading, fluid viscosity, flow rate and acceptable differential pressure must also be considered.

What Are the Typical Construction Options?

A glass fiber pleated cartridge generally consists of several functional components:

Depending on the application, cartridge configurations may include DOE (Double Open End), 222, 226 and other housing-compatible end connections. Industry glass fiber cartridge designs also offer different gasket materials and support constructions according to operating conditions.

How Do You Select the Right Glass Fiber Pleated Filter Cartridge?

For reliable filtration performance, Aris Filtration recommends evaluating the complete operating condition rather than choosing a cartridge based only on micron rating.

Provide the following information when requesting a filtration solution:

• Fluid or liquid to be filtered
• Required micron rating
• Flow rate
• Operating temperature
• Operating pressure
• Differential-pressure limit
• Fluid viscosity
• Contaminant type and approximate loading
• Cartridge length and dimensions
• End-cap connection
• Gasket/O-ring requirement
• Required quantity

The correct filter cartridge is the one that balances particle retention, flow rate, pressure drop, chemical compatibility and service life for the actual process.

Why Choose Aris Filtration for Glass Fiber Filter Solutions?

Aris Filtration is an Ahmedabad, Gujarat-based industrial filtration manufacturer and exporter focused on macro- and micro-filtration solutions for air, gas and liquid applications. The company states that it serves sectors including oil & gas, steel, textiles, mining and minerals, cement, electronics and water treatment.

Its broader filtration portfolio includes cartridge filter housings, bag filter housings, strainers, PP pleated filter cartridges, sintered cartridges, wire mesh cartridges, and paper pleated cartridges, liquid filter bags, capsule filters, air filters and gas filtration products.

Aris Filtration states that its quality systems include ISO 9001:2015, with manufacturing and design practices referencing standards such as ASME, BS and DIN. Its quality process includes testing and inspection procedures before products are released to customers.

Get a Glass Fiber Pleated Filter Cartridge Solution

Whether the requirement is for water treatment, refinery filtration, mining, chemicals, textiles, oil & gas, petrochemicals, power plants, paints & inks, edible oils, pharmaceuticals or other industrial processes, cartridge selection should be based on actual process conditions.

Contact Aris Filtration with your required micron rating, flow rate, cartridge dimensions, fluid type and operating conditions to discuss the appropriate glass fiber pleated filter cartridge configuration.
